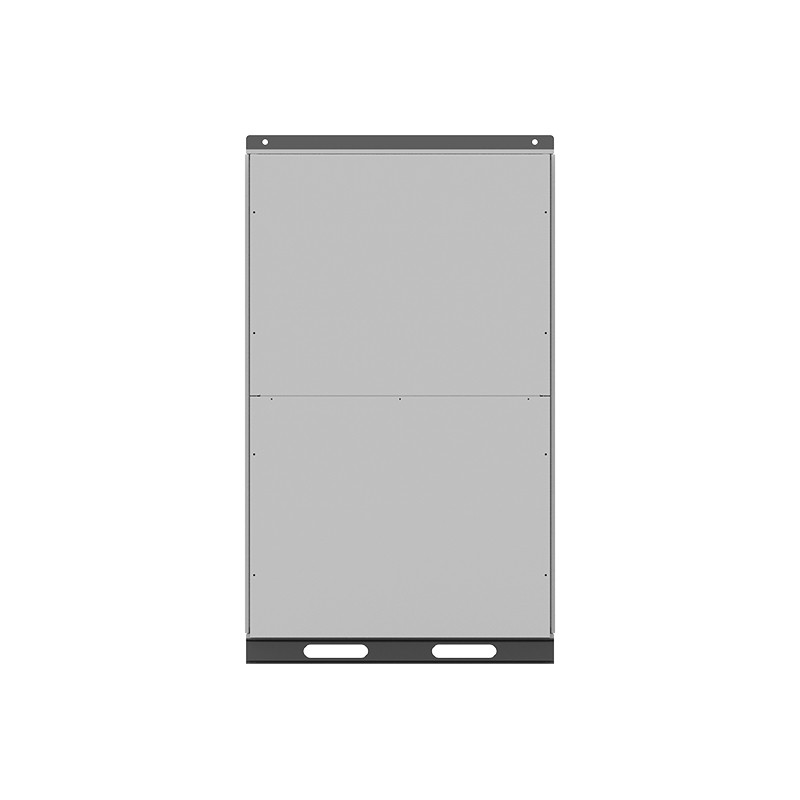

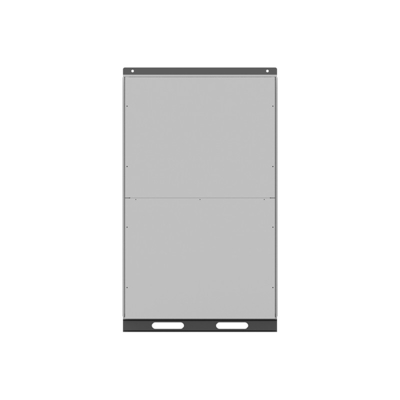

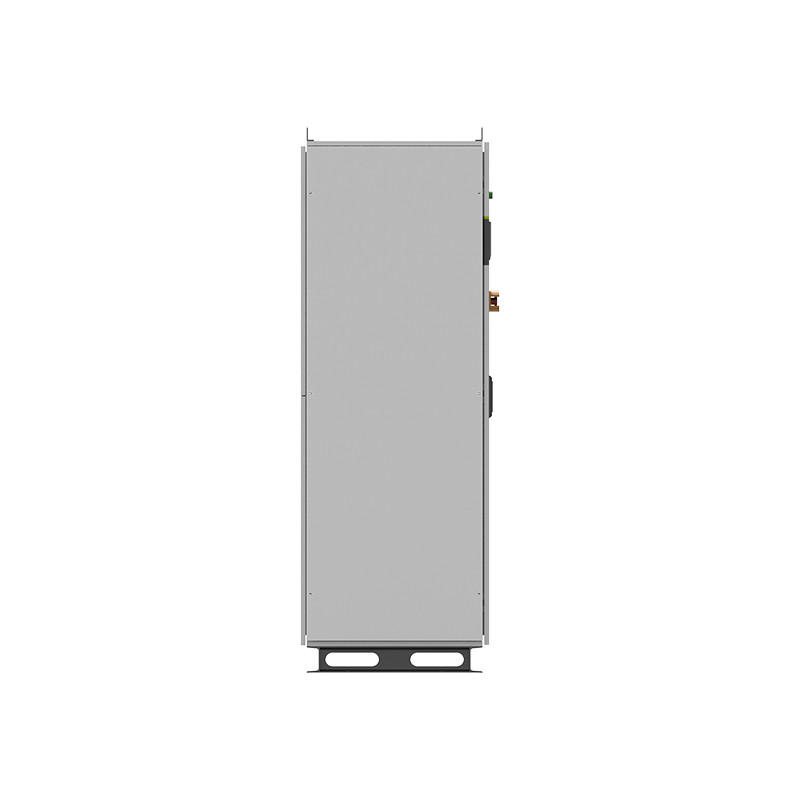

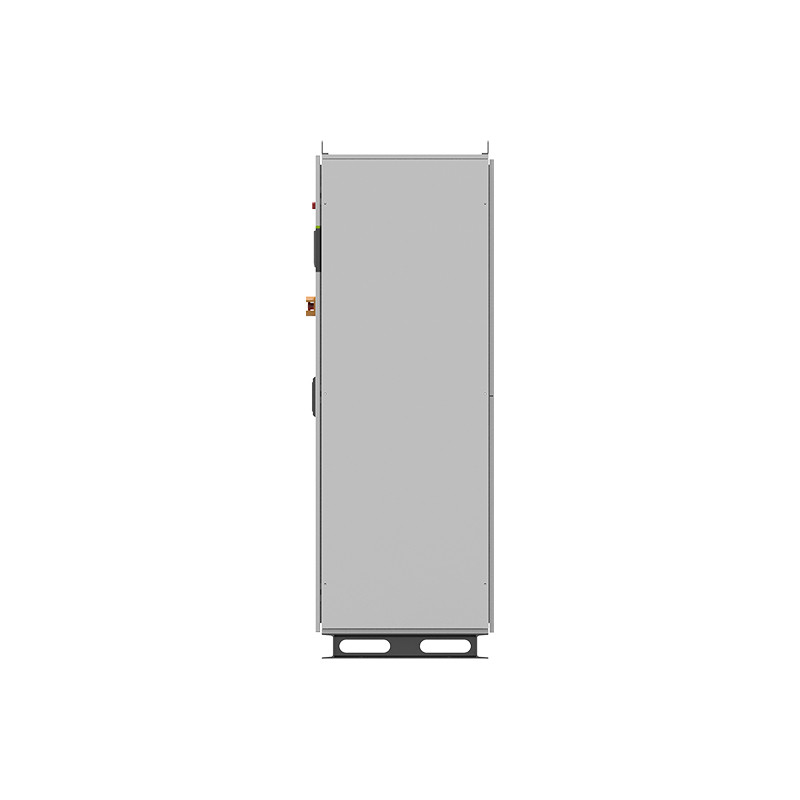

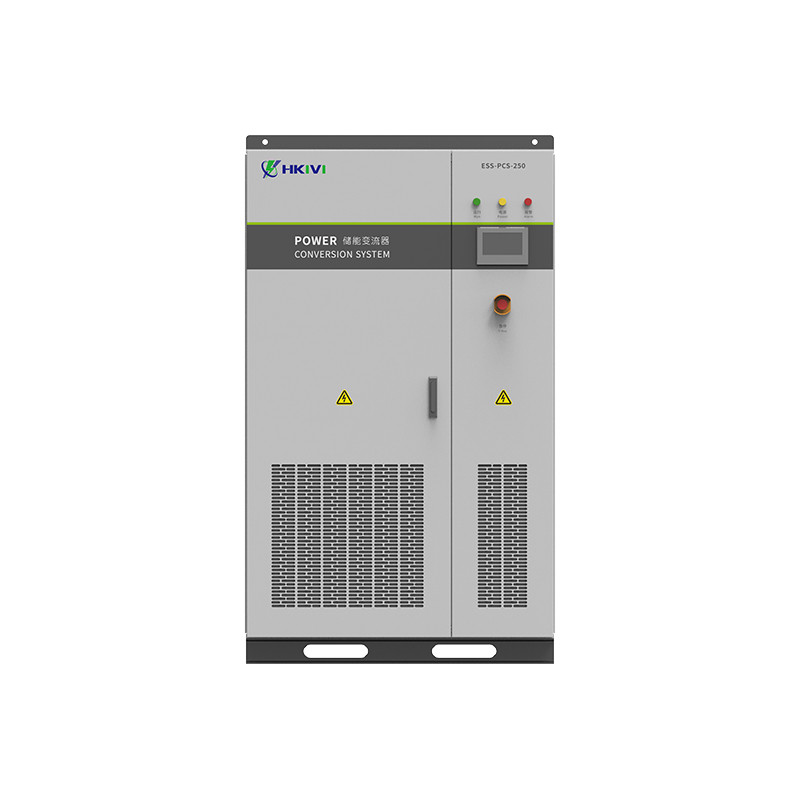

ESS PCS-250-T Power Conversion System Isolated Energy Storage Converter
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Rated Power | 250kW | Maximum Capacity | 275kVA |
|---|---|---|---|
| Maximum DC Voltage | 1000V | Maximum DC Current | 567A |
| Battery Voltage Range | 500~900V | Rated Grid Voltage | 400V,3W+N+PE |
| Grid Voltage Range | -15%~10% | Maximum AC Current | 400A |
| Rated Grid Frequency | 50Hz | THDi (Power Rating) | ＜3% |
| Adjustable Range Of Power Factor | -1~1 | Isolation Mode | Transformer Isolation |
| Service Life | 20 Years | Dimensions (W * H * D) | 1200*2000*700mm |
| Weight | 1350kg | ||
| Highlight | Isolated Energy Storage Converter,ESS PCS-250-T Power Conversion System |
||
Product Description
ESS PCS-250-T Power Conversion System Isolated Energy Storage Converter
A Power Conversion System (PCS) is the central power electronics component designed for efficient energy form conversion and control. Its primary functions include:
-
Bidirectional Energy Conversion: Seamless DC-AC and AC-DC transformation (e.g., battery storage-grid interaction)
-
Dynamic Regulation: Real-time control of voltage, frequency, power factor (compliant with IEEE 1547)
-
System Integration: Intelligent interface among renewables, storage, and grid
2. Technical Architecture
2.1 Core Subsystems
| Module | Function | Key Technologies |
|---|---|---|
| Power Converter | AC/DC or DC/AC conversion (Topologies: 2-level, 3L-NPC, MMC) | SiC/GaN devices, low-inductance layout |
| Control System | Executes MPC algorithms with <1ms response | RTOS, FPGA control |
| Protection System | Over/under voltage/frequency, anti-islanding (UL 1741 SA compliant) | Hardware-in-Loop (HIL) validation |
| Thermal Management | Maintains junction temperature <125°C (liquid/air cooling) | CFD-optimized design |
2.2 Performance Metrics
-
Efficiency: 97-99% (CEC weighted)
-
THD: <3% at full load
-
Response Speed:
-
Step load response: <10ms (0-100%)
-
Frequency regulation: ±0.5Hz (grid mode)
-
-
3. Applications
3.1 Renewable Integration
-
PV/Wind Smoothing: Mitigates ±15%/min power fluctuations (IEC 61400-21)
-
Virtual Synchronous Generator (VSG): Provides inertia emulation (damping ratio: 0.5-2.5 adjustable)
-
3.2 Energy Storage Systems
-
Battery Management:
-
CC/CV transition accuracy: ±0.5%
-
SOC estimation error: <2% (Kalman filter)
-
-
Grid Services:
-
Primary frequency response: <2s activation (PJM requirements)
-
VAR support: ±0.95 power factor range
-
-
3.3 Industrial & Specialty
-
Microgrids: Black start capability (0.2C discharge rate)
-
EV Fast Charging:
-
350kW liquid-cooled architecture
-
95% efficiency @30-100% load
-
-
Marine Power:
-
DNV-GL certified
-
<5% THD (IEEE 519-2014)
-
