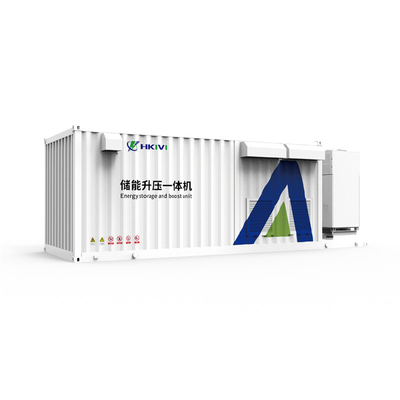

Energy Storage Boosting System BESS Battery With Parallel Operation

Energy Storage Boosting System BESS Battery With Parallel Operation

This all-in-one boosting solution integrates multiple key components into a single, optimized package:

• High-efficiency step-up transformer: Designed for minimal energy loss during voltage conversion

• Advanced power conversion system (PCS): Enables bidirectional power flow between storage and grid

• Intelligent control unit: Coordinates system operations with the broader energy management system

• Protection and switching equipment: Ensures safe operation under various grid conditions

• Cooling system: Maintains optimal operating temperatures for all components

The ESS-AC-5000 is particularly notable for its modular design philosophy, allowing for flexible capacity configurations to match different project requirements. This design approach enables easy scalability from smaller commercial installations to utility-scale energy storage projects.

Core Technologies and Innovations

High-Efficiency Power Conversion

The ESS-AC-5000 incorporates state-of-the-art power electronics to minimize energy losses during the boosting process:

• SiC-based conversion technology: Utilizing silicon carbide (SiC) semiconductors for reduced switching losses and higher operating frequencies compared to traditional silicon-based IGBTs 1

• Multi-level topology: Advanced converter architecture that improves waveform quality and reduces harmonic distortion

• Dynamic voltage regulation: Automatic adjustment of conversion parameters to maintain optimal efficiency across varying load conditions

•

Intelligent Grid Integration

The system features advanced grid-support functionalities that go beyond simple voltage conversion:

• Grid-forming capability: Can establish and maintain grid voltage and frequency independently, crucial for weak grids or islanded operation

•

• Reactive power compensation: Provides dynamic VAR support to improve grid stability

• Frequency regulation: Rapid response to grid frequency deviations (response time <100ms)

• Fault ride-through: Maintains operation during grid disturbances per relevant grid codes

•

Thermal Management System

The ESS-AC-5000 employs a sophisticated cooling solution to ensure reliable operation:

• Hybrid cooling approach: Combines liquid cooling for power electronics with forced air cooling for the transformer

• Adaptive fan control: Dynamically adjusts cooling intensity based on load and ambient conditions

• Temperature monitoring: Continuous tracking of critical component temperatures with predictive overheating prevention

•

Safety and Protection Features

The system incorporates multiple layers of protection:

• Comprehensive electrical protection: Overvoltage, undervoltage, overcurrent, short-circuit, and arc flash detection

• Fire prevention system: Early smoke detection and suppression capabilities

• Isolation monitoring: Continuous checking of insulation integrity

• Emergency shutdown: Fast disconnection capability in critical situations

Application Scenarios and System Integration

Utility-Scale Energy Storage

The ESS-AC-5000 is particularly valuable in grid-scale energy storage applications:

• Transmission-level integration: Enables direct connection of large battery systems to high-voltage transmission networks

• Ancillary services: Facilitates participation in frequency regulation and voltage support markets

• Renewable energy smoothing: Helps mitigate variability from solar and wind farms

•

Commercial & Industrial (C&I) Applications

For C&I installations, the system provides:

• Peak shaving: Reduces demand charges by discharging during peak periods

• Backup power: Maintains critical operations during grid outages

• Microgrid support: Serves as the grid interface for independent energy systems

•

Renewable Energy Integration

The boosting system excels in renewable-plus-storage configurations:

• Solar PV plants: Stores excess generation for later use or grid injection

• Wind farms: Compensates for wind variability and provides inertia

• Hybrid power plants: Combines multiple renewable sources with storage

•

Specialized Applications

• Weak grid support: Stabilizes remote or underdeveloped grids

• Black start capability: Helps restore power after widespread outages

• High-altitude operation: Certified for installations up to 5000m elevation
